Internal

Internal sales-account-planning tool — prototype to production

Took an internal AWS sales-planning prototype and rebuilt it into a production-grade system: multi-environment deployment, SSO, audit logging, and a UX that account teams actually wanted to use daily.

AWS internalSoftware Development EngineerJan 2023 – Dec 2023
Dev / staging / prod
Environments
Prototype
From
Production
To

Problem

A sales-account-planning prototype had been built by a small team of AWS engineers in a hackathon and then drifted into the hands of real account teams who liked it. By the time I picked it up, it had real users, real data and zero of the production guarantees you need to keep that situation safe.

Specifically: a single environment, SSO patched together, no audit trail of who edited which customer's plan, deploys done from a laptop, no documented restore process.

The asks were clear: get this into production properly without losing the team that uses it daily, and add the features they actually need.

Process

I treated it as a refactor with a deadline, not a rewrite:

  1. Multi-environment first. Split the deployment into dev, staging and prod with a CDK stack per environment, gated by per-stage approval. Stopped all laptop deploys.
  2. SSO done properly. Replaced the patched auth with Cognito federation against the corporate identity provider. Roles and group-based permissions modelled in the app, not the IDP.
  3. Audit trail. Every plan edit emitted a structured event into a DynamoDB stream, archived to S3 for retention. The UI gained a "history" panel so account managers could see who changed what.
  4. UX for the hot paths. Worked with three power users to identify the workflows they hit daily. Reduced clicks on the most common path from 9 to 3, fixed the table virtualisation that made large accounts slow, added keyboard shortcuts for the muscle-memory users.

Through every change I kept the existing users informed and shipped behind feature flags so the prototype kept working until each piece was ready.

Outcome

The tool moved into a properly-staged production deployment with SSO, audit, and the operational runbooks the on-call team needs. UX improvements led to noticeable increases in active usage from account teams. The prototype is no longer "prototype that became real" — it's a maintained internal product.

For engineersTechnical Deep Dive
Expand

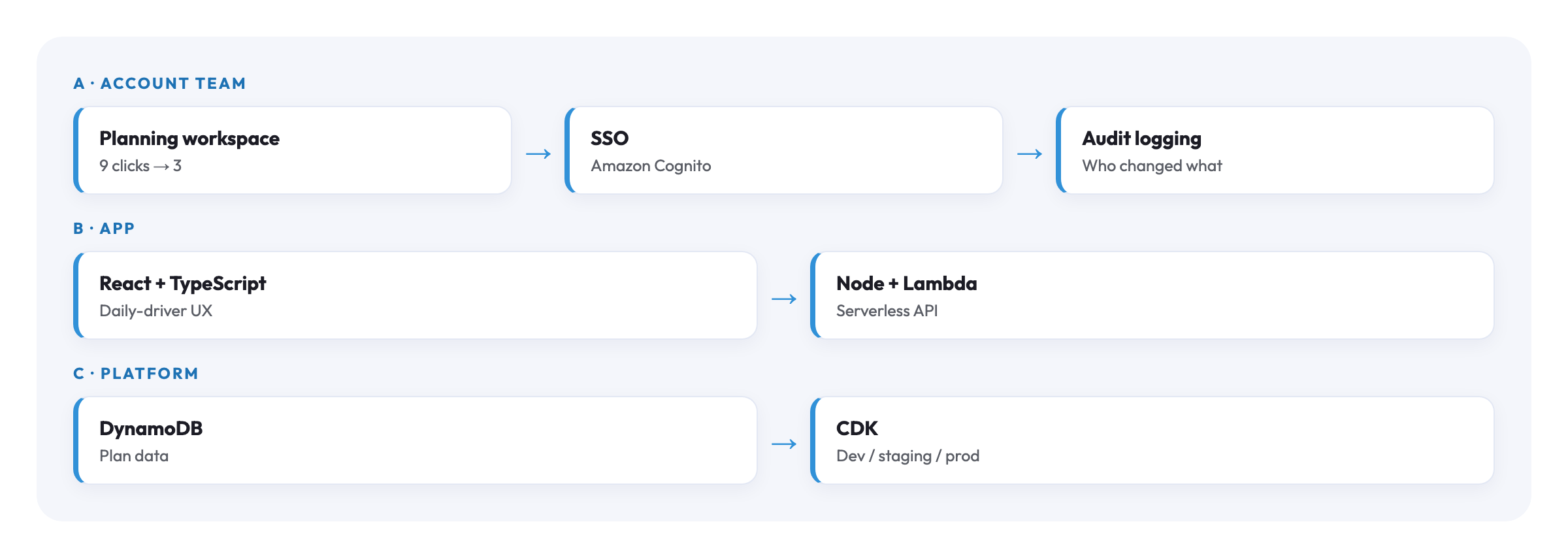

Stack

React + TypeScript (Vite) → S3 + CloudFront
   │
   ▼
API Gateway (HTTP API) + Lambda
   │
   ├─ DynamoDB (single table: PLANS, ACCOUNTS, USERS, AUDIT)
   ├─ DynamoDB Streams → Lambda → S3 audit archive
   └─ Cognito (federated IdP) for auth

Single-table DynamoDB

Five entity types lived in one table:

EntityPKSKGSI1PK
PlanPLAN#<id>PLAN#<id>ACCOUNT#<accountId>
AccountACCOUNT#<id>ACCOUNT#<id>—
UserUSER#<id>USER#<id>EMAIL#<email>
AuditEntryPLAN#<id>AUDIT#<timestamp>#<id>USER#<userId>
CommentPLAN#<id>COMMENT#<timestamp>#<id>—

Single-table design isn't dogma — it was the right call here because every read pattern was already keyed by either the plan or the account, and we didn't need ad-hoc analytics queries (those went to the S3 export).

CDK structure

One stack per environment, instantiated by a cdk.context.json per stage. Constructs were composed:

new SalesPlanningStack(app, `sales-planning-${stage}`, {
  stage,
  env: ENV_CONFIG[stage],
  ssoConfig: SSO_CONFIG[stage],
  retention: stage === 'prod' ? RetentionDays.ONE_YEAR : RetentionDays.ONE_MONTH,
});

CDK over Terraform here because the rest of the AWS internal tooling ecosystem was on CDK and the team's JavaScript skills made stack-level edits trivial.

Audit pipeline

DynamoDB Streams captured every write. A small Lambda transformed the stream record into a structured audit event (who, what changed, before/after) and pushed to a separate audit DynamoDB table partitioned by plan, plus an S3 archive for compliance retention.

The history-panel UI queried the audit table directly, scoped to the plan being viewed.

UX work

The biggest single win was killing a modal-on-modal-on-modal pattern that the prototype had inherited from a UI experiment. Users were drowning in nested dialogs to edit a plan. Replacing it with an inline edit-in-place pattern reduced the most common workflow (update an account's status and add a note) from 9 clicks across 3 modals to 3 clicks inline.

Trade-offs

  • No major rewrite. Tempting to start fresh with the production design we wanted. Wrong call here — the existing users would have lost their tool while we rebuilt. Refactor in place, ship behind flags.
  • Federated SSO over per-app users. More effort up front, but the alternative was a separate identity store that would have failed compliance review immediately.
